Chimney Elbows & Elbow Kits
Elbows & Offset Kits for Class A Chimney Systems
Chimney elbows and elbow kits allow chimney pipe systems to safely change direction when venting around structural obstacles. These components create controlled offsets in the chimney system while maintaining proper airflow and clearances for wood stove and fireplace installations.
This collection includes chimney elbows and offset kits designed for 6-inch and 8-inch All-Fuel HT chimney systems. Shasta Vent elbows help installers route chimney pipe around roof eaves, rafters, walls, or framing while maintaining a safe and properly functioning vent system.
Chimney Elbows & Offset Components
Chimney elbows are used when a chimney system cannot run straight vertically due to obstacles such as roof overhangs, structural framing, or wall penetrations. These components allow the chimney pipe to safely change direction while maintaining proper venting performance.
Most Class A chimney offset systems use two elbows to create an offset, allowing the chimney pipe to move around an obstruction before returning to a vertical run.

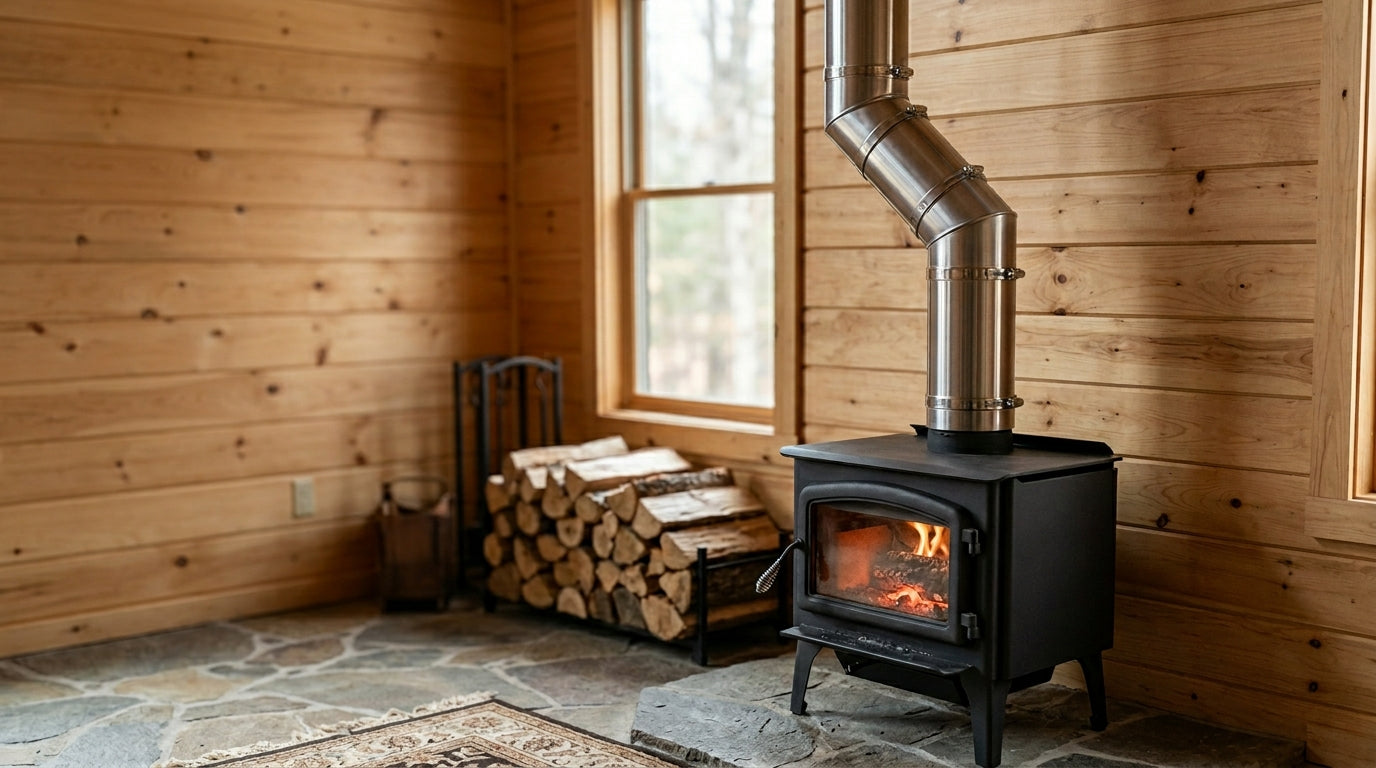

Elbows are commonly used when venting a wood stove through a wall and then running chimney pipe vertically up the exterior of the home, or when navigating structural elements inside a building.
Although elbows are sometimes necessary, straight chimney runs typically provide the best draft performance because smoke and flue gases move most efficiently through a vertical pipe.
Below is an overview of the elbow components commonly used in chimney installations.
Chimney Elbow Kits
Elbow kits are designed to create an offset in a chimney system. Most kits include two elbows and a support strap or bracket, allowing the chimney pipe to angle around an obstacle before returning to a vertical orientation.
These kits are commonly used when chimney pipe must pass around roof overhangs, attic framing, or other structural barriers.
Offset Elbows
Offset elbows are angled pipe sections that allow chimney pipe to change direction. They are typically available in angles such as 15°, 30°, or 45°, depending on the amount of directional change required.
Two elbows are usually paired together to create a controlled offset that redirects the chimney pipe before returning to a vertical path.
Why Chimney Elbows Matter
Chimney elbows help installers route vent systems safely when straight chimney runs are not possible. They help:
✓ navigate roof overhangs or eaves
✓ route chimney pipe around framing or structural obstacles
✓ create offsets in exterior chimney runs
✓ maintain safe clearances from combustible materials
✓ ensure proper chimney installation when obstacles exist
Using the correct elbow configuration helps maintain chimney safety while allowing flexible vent system installation.
Chimney Elbows & Offset Kits FAQs
Chimney elbows allow chimney pipe to change direction when obstacles prevent a straight vertical chimney run. They help route vent systems around roof overhangs, walls, or structural framing.
Most chimney installations allow up to two elbows to create an offset. Using too many bends can reduce chimney draft and affect venting performance.
Chimney elbows are typically available in angles such as 15°, 30°, and 45°, depending on the amount of directional change required for the installation.
Yes. Each bend in the chimney system slightly reduces airflow, which is why straight vertical chimney runs generally provide the best draft performance.
Chimney elbows must match the diameter of the chimney pipe. Most residential wood stove systems use 6-inch or 8-inch Class A chimney pipe, and elbow kits are designed to fit those pipe sizes.
