Ceiling Firestop & Pass-Through Components
Ceiling Firestop Components for Class A Chimney Systems
Ceiling firestop components create a safe passage where chimney pipe passes through ceilings or floor levels. These components help maintain required clearances from combustible materials while preventing heat and fire from spreading between floors.
This collection includes ceiling firestop plates, radiation shields, and pass-through components designed for 6-inch and 8-inch All-Fuel HT chimney systems. Shasta Vent ceiling firestop components are engineered for durability, safe chimney installation, and proper structural protection in wood stove and fireplace venting systems.
Ceiling Firestop & Pass-Through Components
Ceiling firestop components are used when chimney pipe passes through ceilings or between floors in a building. These components help maintain safe clearances from combustible materials and protect the surrounding structure from heat generated by the chimney system.
Firestop components also help slow the spread of fire between floors by sealing the opening where the chimney pipe passes through the ceiling structure.
In most chimney installations, insulated Class A chimney pipe must maintain approximately two inches of clearance from combustible materials, such as framing or insulation, when passing through ceilings or floor structures.
Below is an overview of the ceiling firestop components commonly used in chimney installations.

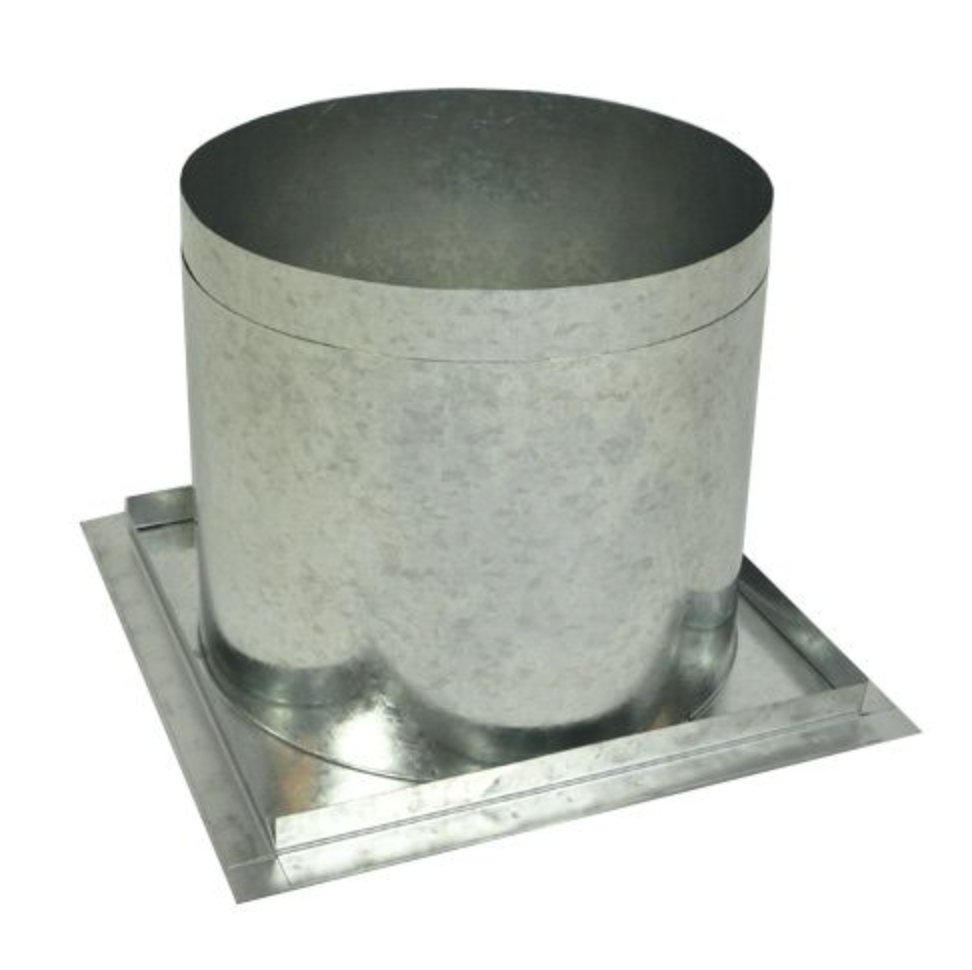

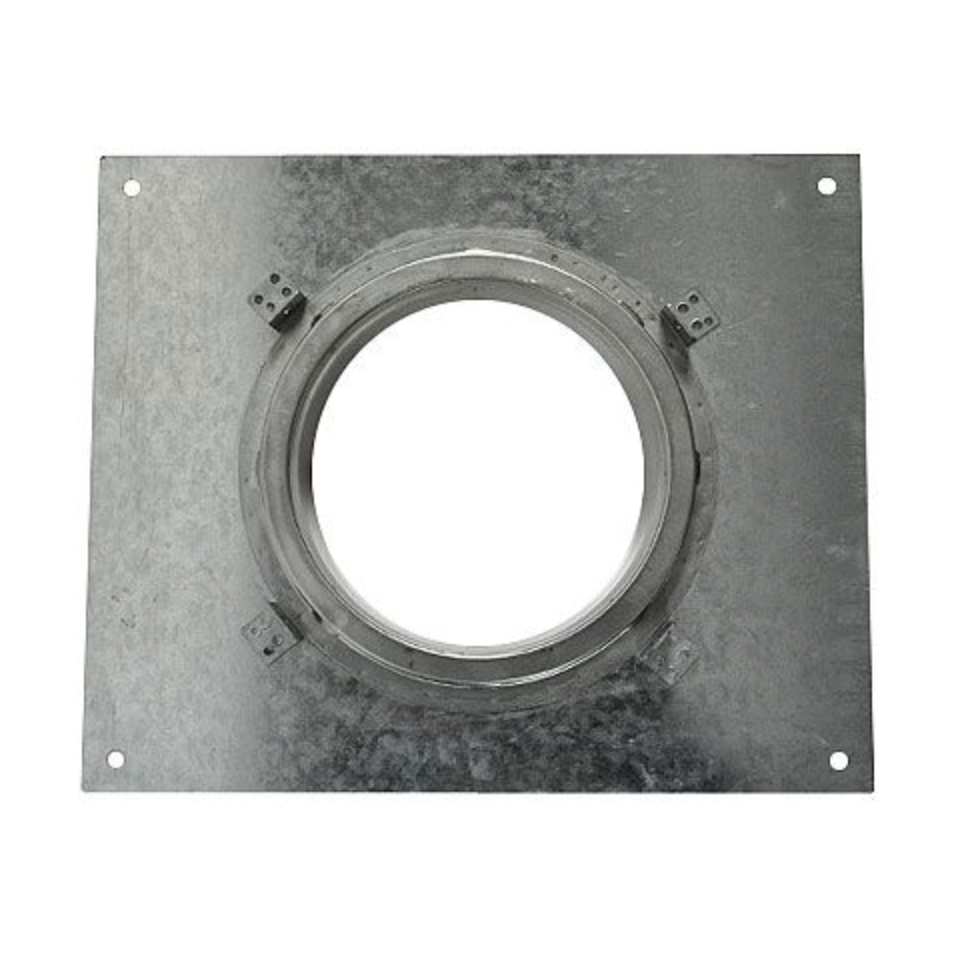

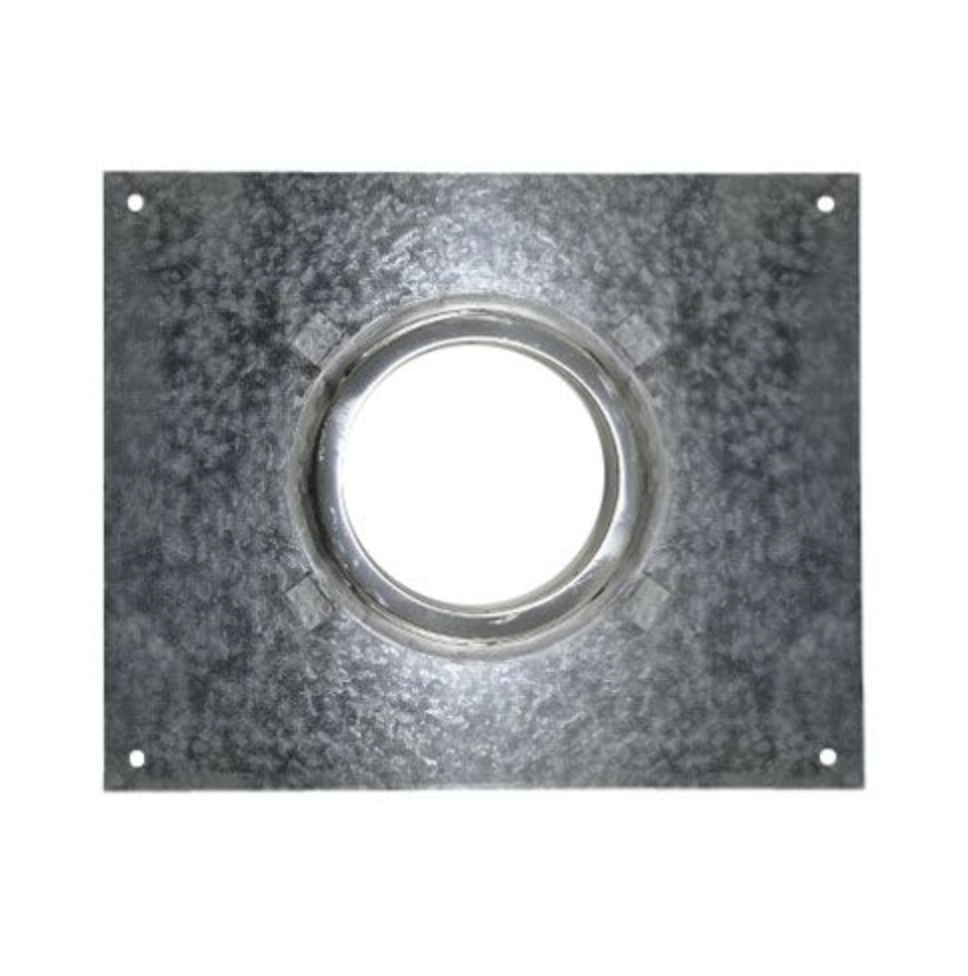

Ceiling Firestop Plates

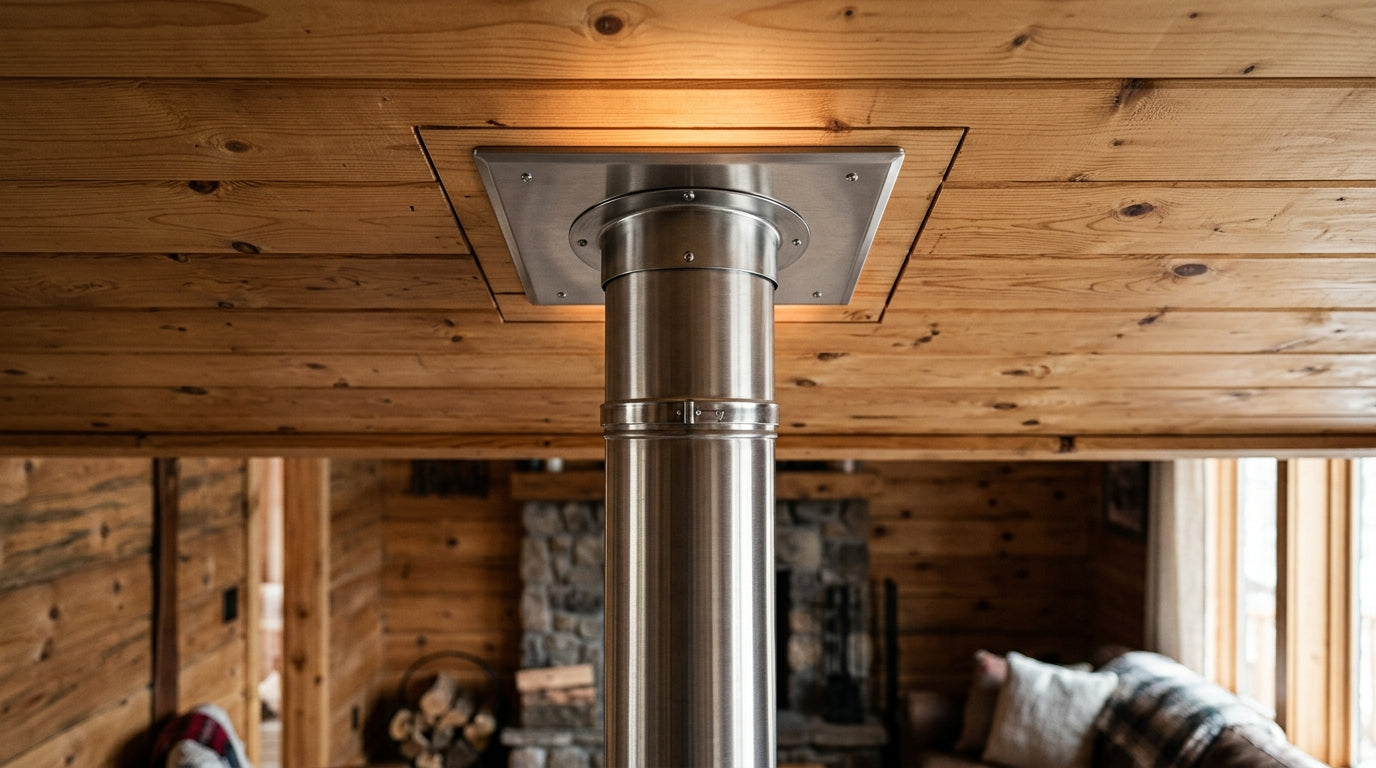

Ceiling firestop plates are installed where chimney pipe passes through a framed ceiling opening. These plates help maintain proper clearance between the chimney pipe and surrounding framing materials.
Firestop plates also provide a finished appearance around the ceiling penetration while helping contain heat and prevent fire from spreading through structural openings.

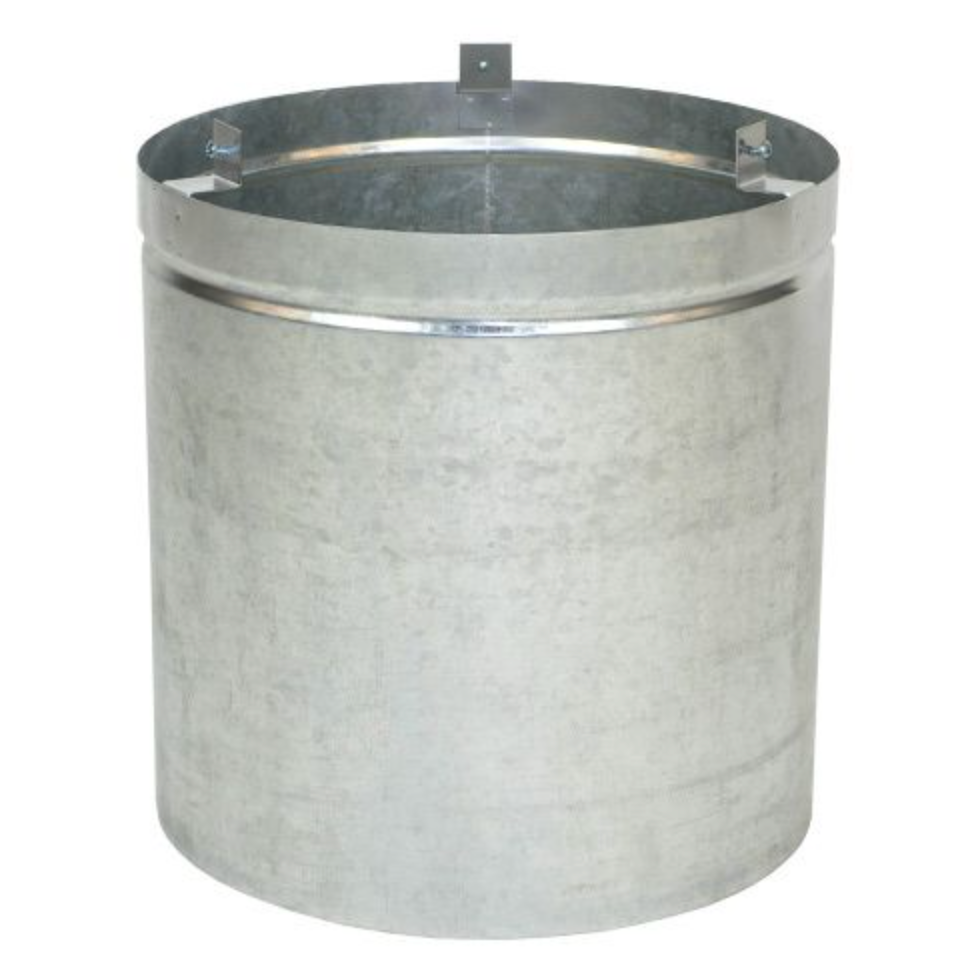

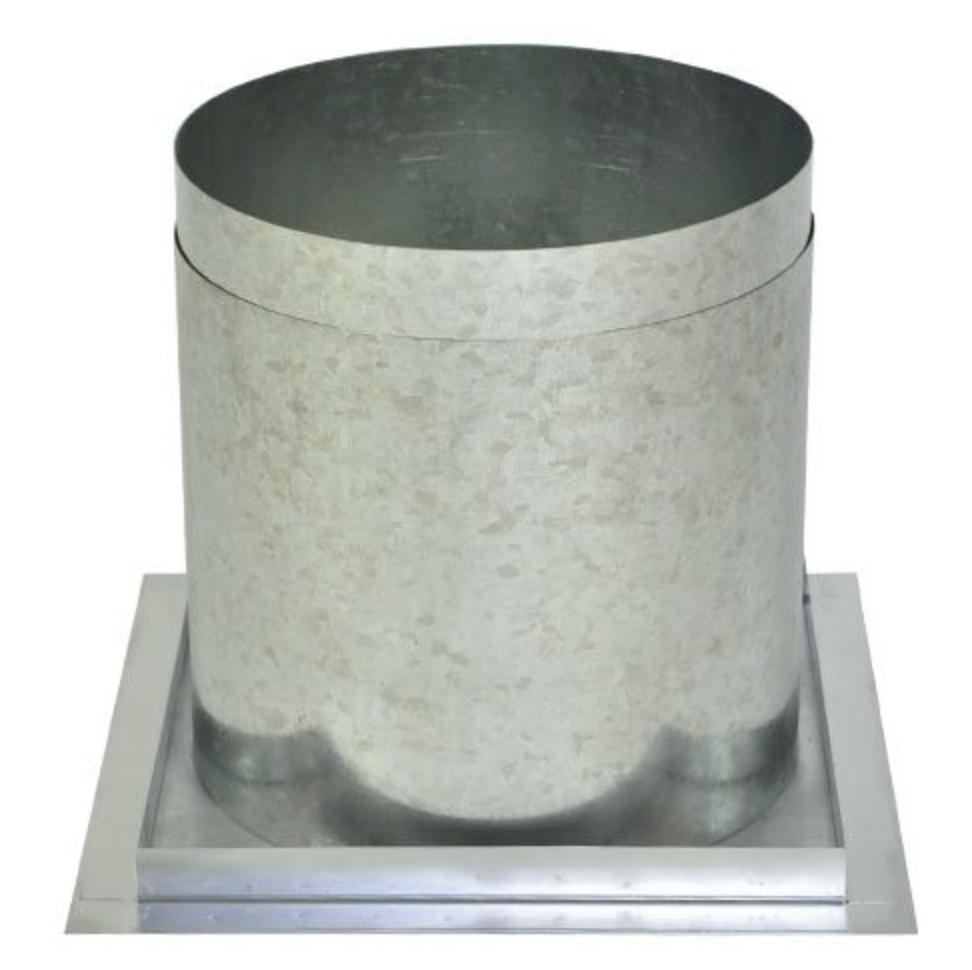

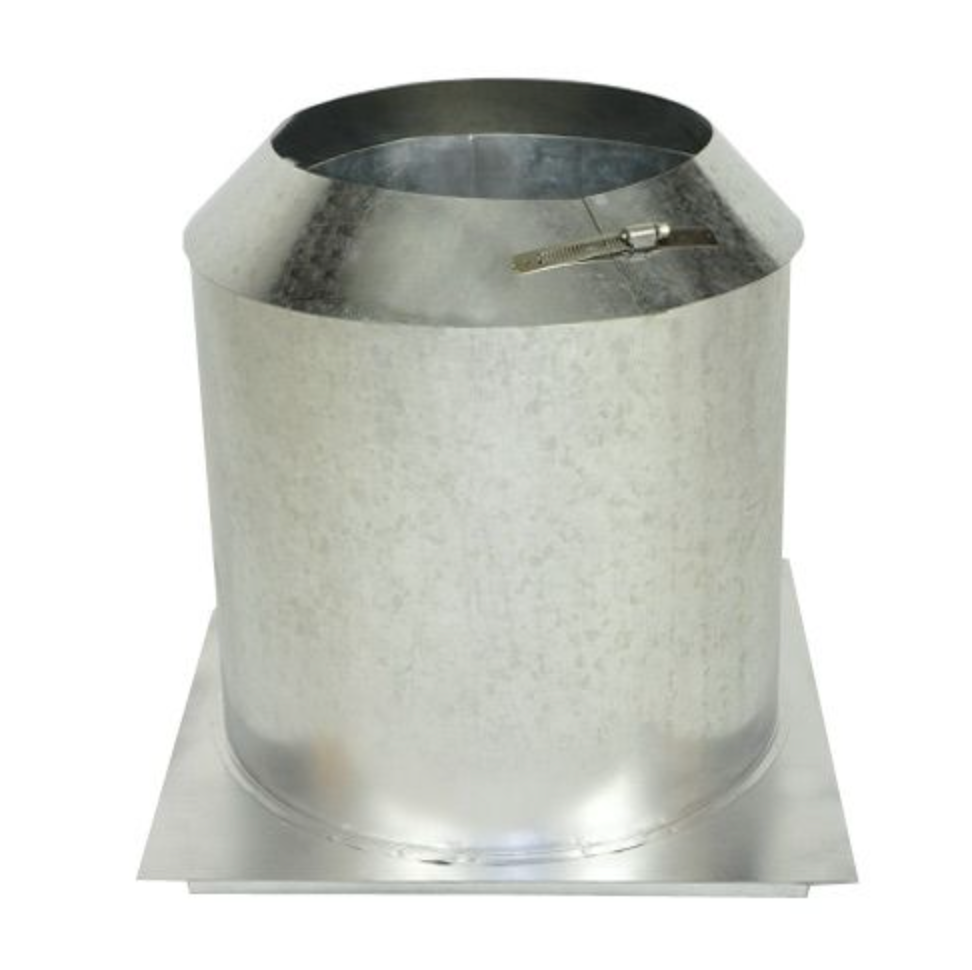

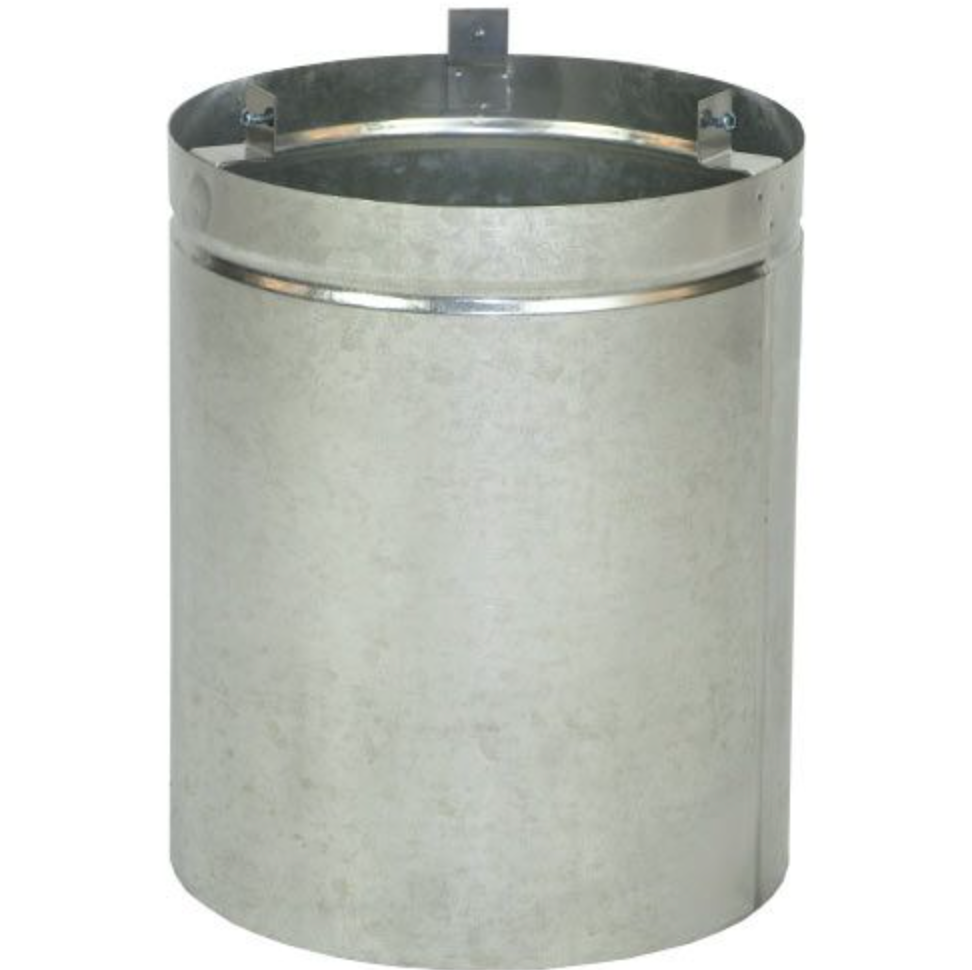

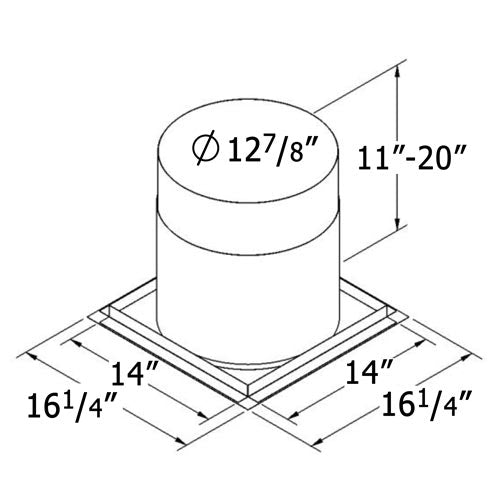

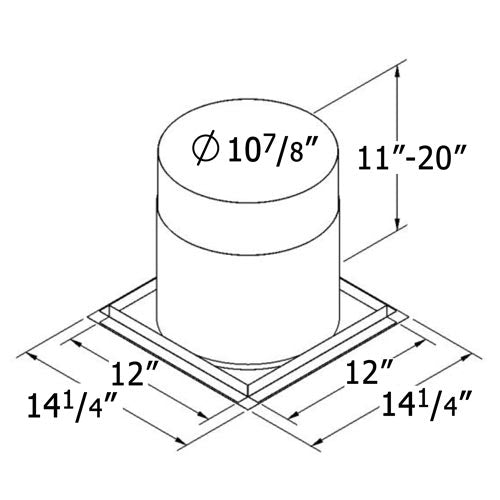

Radiation Shields
Radiation shields protect nearby framing and insulation from heat generated by chimney pipe. These shields help maintain the required air space clearance between the chimney pipe and combustible materials.
In multi-story installations, radiation shields may be required at each floor level where the chimney passes through a ceiling or attic space.

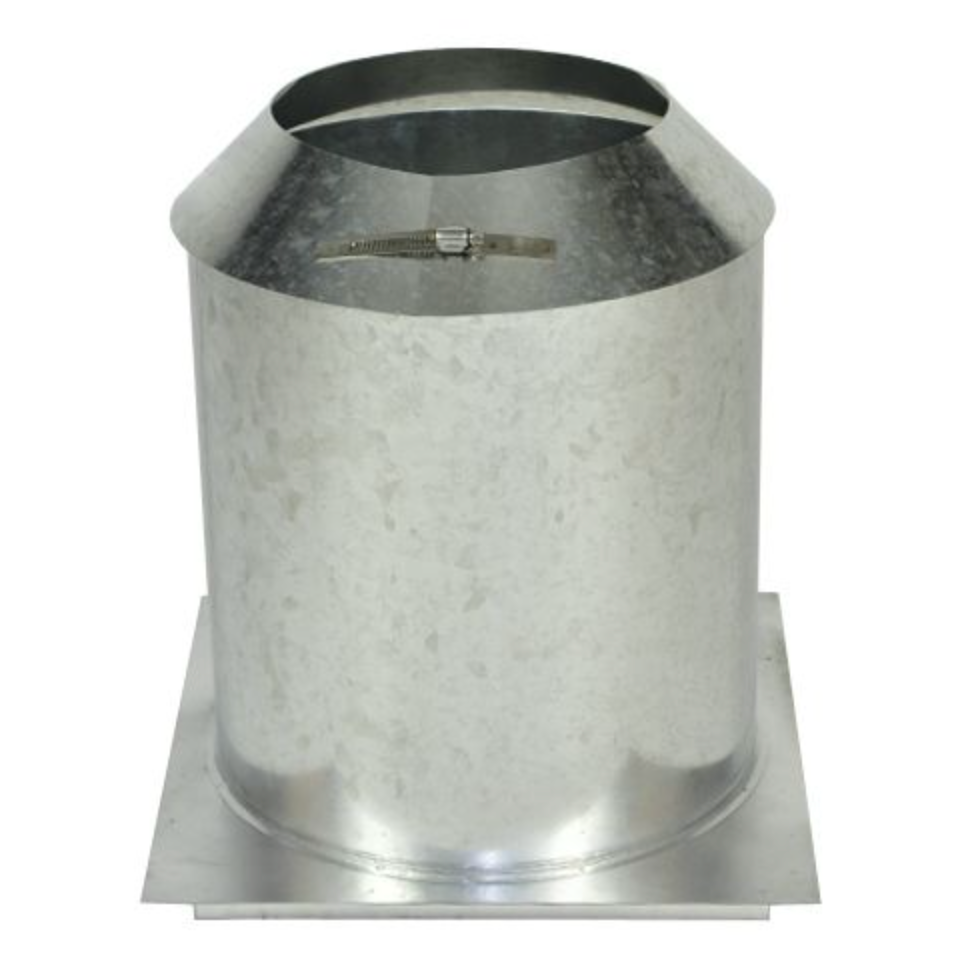

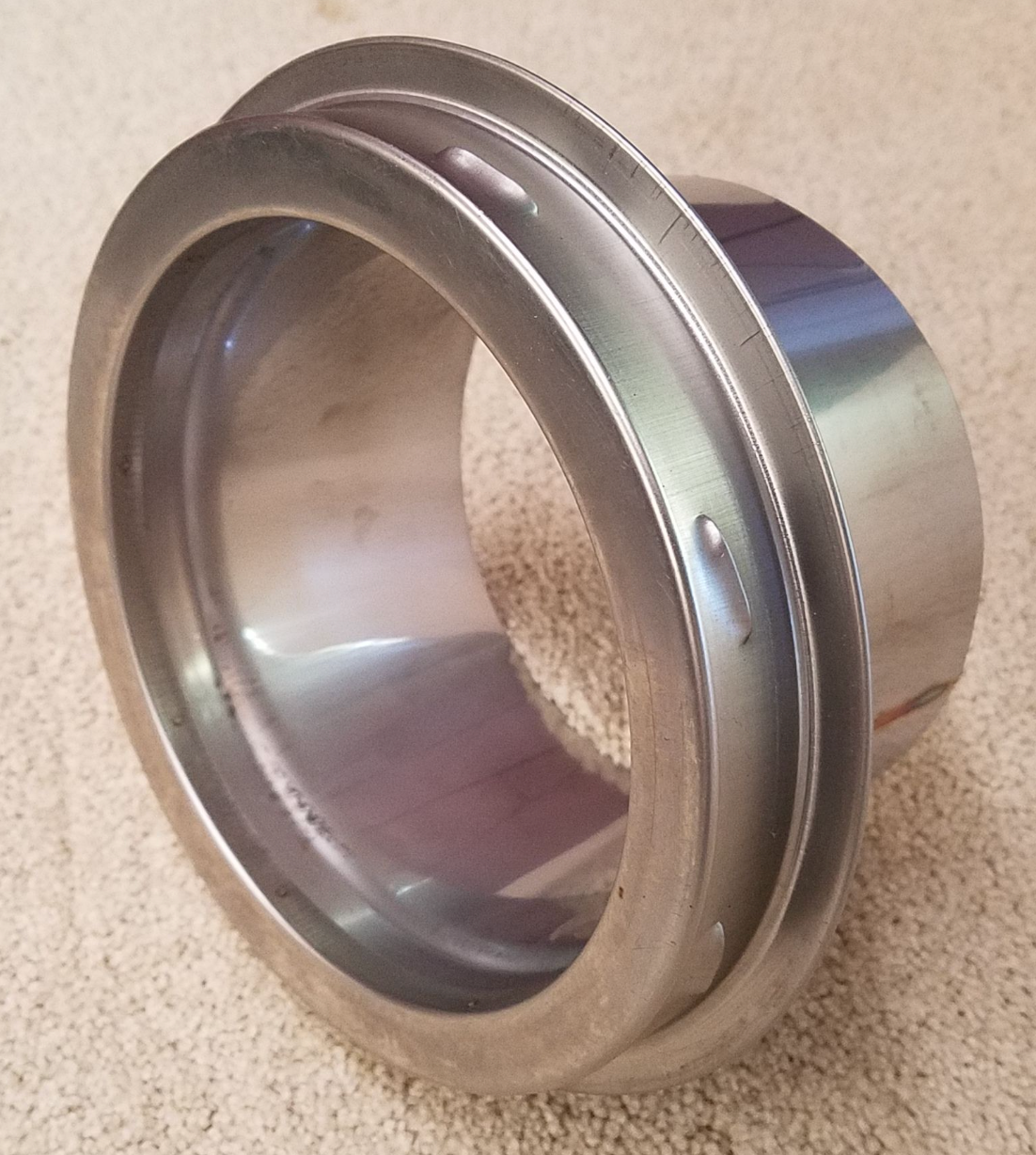

Chimney Pass-Through Components
Pass-through components are designed to guide chimney pipe safely through ceiling structures while maintaining proper alignment and clearance. These components ensure that the chimney system remains properly supported and installed according to venting safety requirements.
Proper pass-through components help create a safe transition between interior stovepipe and insulated Class A chimney pipe systems.
Why Ceiling Firestop Components Matter
Ceiling firestop components play an important role in chimney safety and building protection. They help:
✓ maintain required clearances between chimney pipe and combustible materials
✓ slow the spread of fire between floors
✓ protect structural framing from heat exposure
✓ stabilize chimney pipe as it passes through ceilings
✓ ensure safe chimney installations that meet building code requirements
Using the correct ceiling firestop components helps ensure chimney systems remain safe, stable, and properly installed throughout the life of the heating appliance.
Ceiling Firestop Components FAQs
A chimney ceiling firestop is a component installed where chimney pipe passes through a ceiling or floor. It helps maintain proper clearance from combustible materials and slows the spread of fire between floors.
Yes. Firestops are typically required whenever chimney pipe passes through ceilings or floor assemblies to maintain safe clearances and prevent fire from spreading through structural openings.
Most Class A chimney systems require at least 2 inches of clearance from combustible materials, such as wood framing or insulation.
A firestop helps seal the ceiling penetration and slow fire spread between floors, while a radiation shield protects nearby framing and insulation from heat produced by the chimney pipe.
Yes. Chimney pipe can pass through multiple floors when proper firestop plates and radiation shields are installed at each ceiling level.
Shop by collection

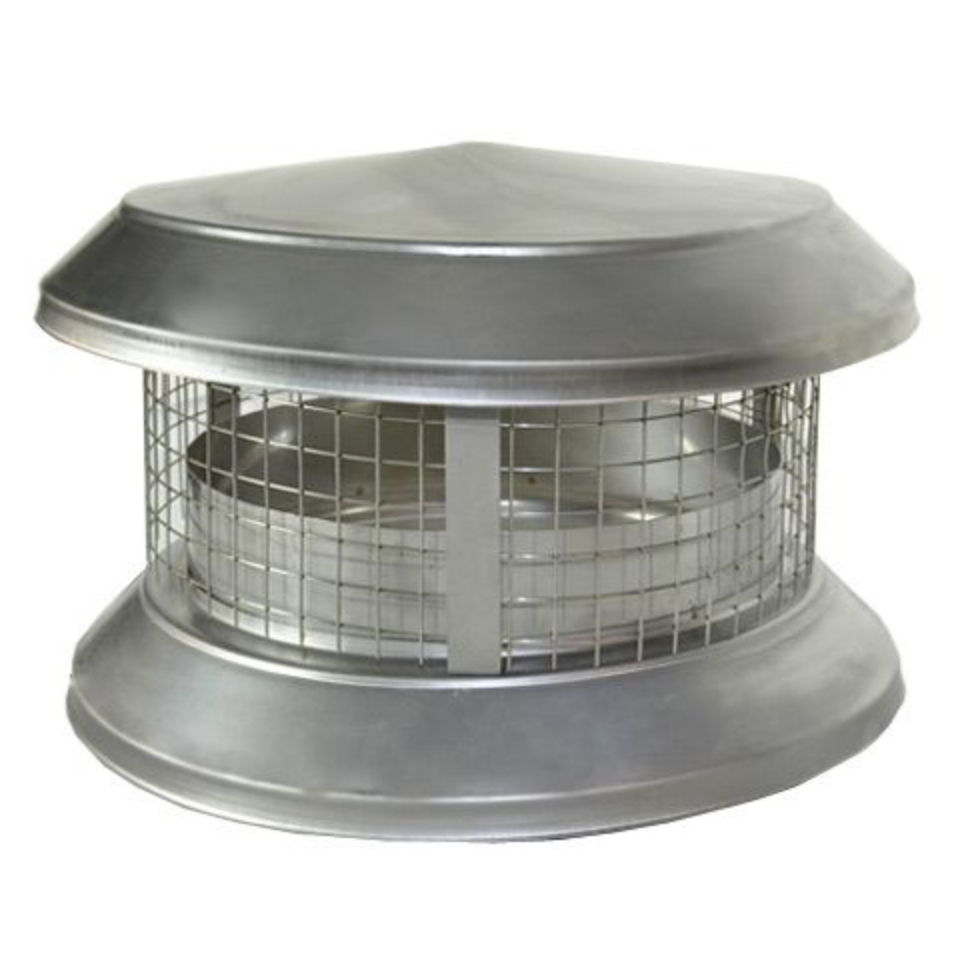

Caps & Finishing Pieces
