Overview Summary
Pipe Types: Interior venting uses single-wall (18-inch clearance) or double-wall (6-inch clearance) stove pipe. Passing through walls, ceilings, and the roof requires Class A insulated chimney pipe (2-inch clearance).
Sizing: Chimney pipe must match the stove’s collar diameter—typically 6-inch or 8-inch. Never undersize the chimney pipe, as it causes dangerous backdrafting.
Clearances: Standard interior single-wall pipe requires 18 inches of clearance from combustible walls. Class A double-wall insulated pipe reduces structural clearance requirements to just 2 inches.
Kits: System configurations depend on layout. Through-the-Ceiling kits utilize a ceiling support box and attic shield, while Through-the-Wall kits require a wall thimble, exterior tee, and wall straps.
When planning a wood stove installation, choosing the right chimney pipe can feel overwhelming. Get it right, and your stove will draw beautifully, burning cleanly and safely for decades. Get it wrong, and you risk poor draft performance, smoke backdrafting into your living room, or worse—a catastrophic house fire.
This guide breaks down the essential mechanics of wood stove chimney pipes, focusing on sizes, clearance codes, and how to choose the right installation kit.
1. Stove Pipe vs. Chimney Pipe: Knowing the Difference
Many homeowners use these terms interchangeably, but they are entirely different components designed for different zones of your home.
Interior Stove Pipe (Single-Wall vs. Double-Wall)
Stove pipe is only used inside the room where the wood stove sits, connecting the stove's collar to the ceiling or wall exit. It is designed to radiate heat into the room.
Single-Wall Pipe: Economical but requires a massive 18-inch clearance from any combustible walls or ceilings.
Double-Wall Pipe: Features an inner and outer layer that insulates the heat, dropping your required wall clearance to just 6 inches.
Class A Insulated Chimney Pipe
The moment your venting system passes through a wall, ceiling, attic, or roof, you must switch to Class A insulated chimney pipe. Class A pipe (like Shasta Vent's brushed stainless steel sections) features thick pre-insulated walls designed to withstand internal temperatures up to 2100°F while maintaining a safe exterior temperature. It requires a strict 2-inch clearance to structural lumber and drywall.
2. Choosing the Right Chimney Pipe Size
The golden rule of chimney sizing is simple: Always match the diameter of your wood stove’s exhaust collar.
6-Inch vs. 8-Inch Flues
Most modern, high-efficiency wood stoves feature either a 6-inch or an 8-inch exhaust collar.
6-Inch Pipe: The standard for small-to-medium stoves and modern EPA-certified models.
8-Inch Pipe: Typically found on older models, large open fireplaces, or heavy-duty wood-burning furnaces.
CRITICAL CODE NOTE: Never downsize your chimney pipe (e.g., running an 8-inch stove into a 6-inch pipe). Restricting the exhaust flow chokes the fire, creates massive creosote buildup, and causes severe backdrafting.
3. Clearance to Combustibles & The 3-2-10 Rule
Safety codes dictate exactly how far your pipes must sit from walls, as well as how high the chimney must extend above your roofline.
Interior Clearances
Single-Wall Stove Pipe: 18 inches from walls/ceilings.
Double-Wall Stove Pipe: 6 inches from walls/ceilings.
Class A Chimney Pipe: 2 inches from everything (studs, joists, insulation, drywall).
The 3-2-10 Exterior Height Rule
To ensure proper draft and prevent wind from pushing smoke back down your chimney, your exterior Class A pipe must follow the national 3-2-10 rule:
The chimney must extend at least 3 feet straight up from the highest point where it penetrates the roof line.
The top of the chimney must be at least 2 feet higher than any part of the structure within a horizontal radius of 10 feet.
4. Through-the-Ceiling vs. Through-the-Wall Kits
To simplify your project, chimney components are generally grouped into two primary kit configurations based on how the pipe leaves the building.
Configuration A: Through-the-Ceiling Kit
Used when the stove pipe goes straight up through the living room ceiling, cuts through an attic space, and exits vertically through the roof.
Core Components: Ceiling Support Box (which bears the weight of the chimney), Attic Insulation Shield (to keep blown-in insulation away from the pipe), Roof Flashing, Storm Collar, and a Rain Cap.
Configuration B: Through-the-Wall Kit

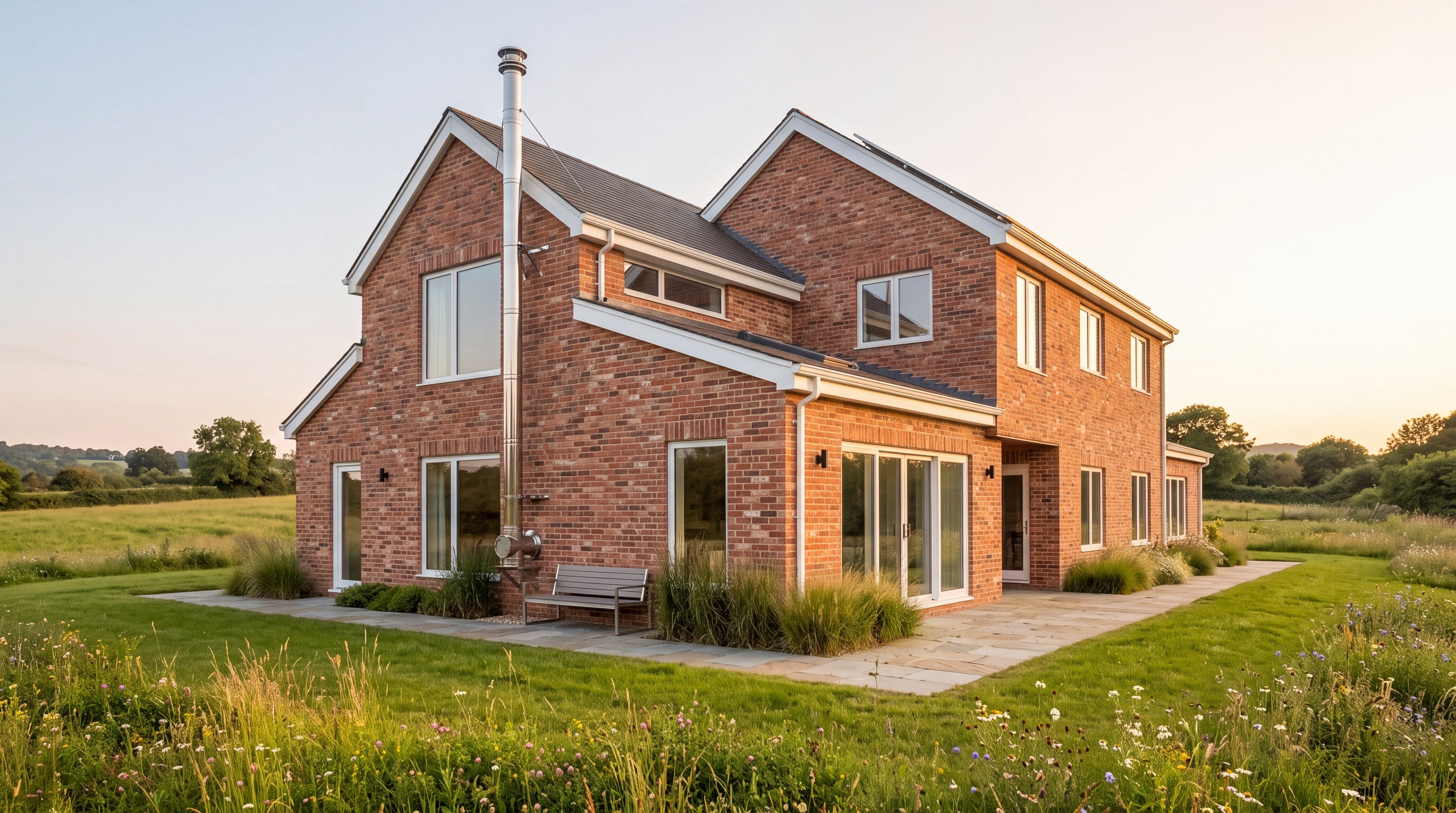

Perfect for multi-story homes or layouts where you don't want to cut through an upper bedroom ceiling or attic. The pipe exits horizontally through an exterior wall and runs vertically up the outside of the house.
Core Components: Wall Thimble (safely passes through studs), Tee Support Box & Tee Section (captures the horizontal pipe and flips it 90 degrees upward), Wall Straps (to anchor the exterior pipe), and a Rain Cap.
Frequently Asked Questions (FAQ)
Q: Can I run Class A chimney pipe all the way down to the top of my wood stove?
A: Yes, you can. While it is more expensive than using standard interior stove pipe, running Class A pipe entirely from the stove up to the ceiling is perfectly code-compliant and lets you maintain a strict 2-inch clearance all the way down to the stove level.
Q: How many elbows can I have in my chimney pipe run?
A: Code and safety standards recommend no more than two 90-degree turns (or four 45-degree offsets) in a single system run. Too many bends restrict exhaust velocity, disrupt draft pressure, and create dangerous traps for creosote accumulation.
Q: How often do I need to clean my Class A chimney pipe?
A: You should inspect your chimney system at least once a year, preferably before the autumn burning season starts. If the internal creosote buildup has reached 1/8 of an inch or thicker, it needs a thorough cleaning to prevent a chimney fire.
Disclaimer
This guide is intended for informational and educational purposes only. Wood stove installations are governed by strict local building codes, national fire safety standards (NFPA 211), and manufacturer-specific instructions. Improper installation can void your home insurance policy and create a severe fire hazard. Always consult a certified professional installer (such as an NFI certified technician) and check with your local building authority before beginning your installation.
