How Much Weight Does a Class A Chimney Add to a Roof?
AI Overview Summary
A typical residential Class A chimney system adds anywhere from 30 to 150 pounds to a roof, depending on the chimney's height, diameter, and installation configuration. Most modern homes can easily support this amount of weight because the chimney load is distributed through support boxes, wall supports, roof braces, and structural framing rather than resting entirely on the roof itself.
Very tall chimney systems, installations in high wind areas, or chimneys extending far above the roofline may require additional support brackets or braces to meet manufacturer requirements.
The chimney's height and support system are generally far more important than its overall weight.
Most Homeowners Overestimate Chimney Weight
One of the most common questions homeowners ask before installing a wood stove is whether their roof can support a Class A chimney.
Fortunately, modern insulated stainless steel chimney systems are surprisingly lightweight.
Unlike traditional masonry chimneys that can weigh several tons, a Class A stainless steel chimney is engineered to provide excellent strength while minimizing weight.
For the vast majority of residential installations, the chimney itself is not a structural concern.
How Much Does a Class A Chimney Weigh?
The exact weight depends on the manufacturer, chimney diameter, and component selection.
As a general estimate:
A 6-inch Class A chimney pipe typically weighs 5 to 8 pounds per foot.
An 8-inch Class A chimney pipe typically weighs 7 to 10 pounds per foot.
Additional components such as flashing, support boxes, chimney caps, tees, elbows, and support brackets also contribute to the total system weight.
For example:
Small Installation
15 feet of chimney
Support box
Flashing
Storm collar
Chimney cap
Approximate total weight:
40 to 70 pounds
Average Two-Story Home
25 feet of chimney
Roof flashing
Ceiling support
Chimney cap
Roof braces
Approximate total weight:
80 to 120 pounds
Tall Installation
35 to 40 feet of chimney
Multiple support brackets
Roof braces
Chimney cap
Approximate total weight:
120 to 180 pounds
Does All of That Weight Sit on the Roof?
No.
This is one of the biggest misconceptions about chimney installations.
A properly installed Class A chimney does not simply rest on your roof.
Instead, the weight is transferred through specially designed support components that carry the load into the home's framing.
Depending on the installation, the chimney may be supported by:
Ceiling support boxes
Wall support brackets
Roof support assemblies
Structural framing
Tee supports for through-the-wall systems
Each component is designed to safely distribute the chimney's weight.
Why Chimney Height Matters More Than Weight
A taller chimney doesn't just weigh more.
It also creates greater wind loads.
As chimney height increases above the roofline, wind applies additional force that can place stress on both the chimney and the roof structure.

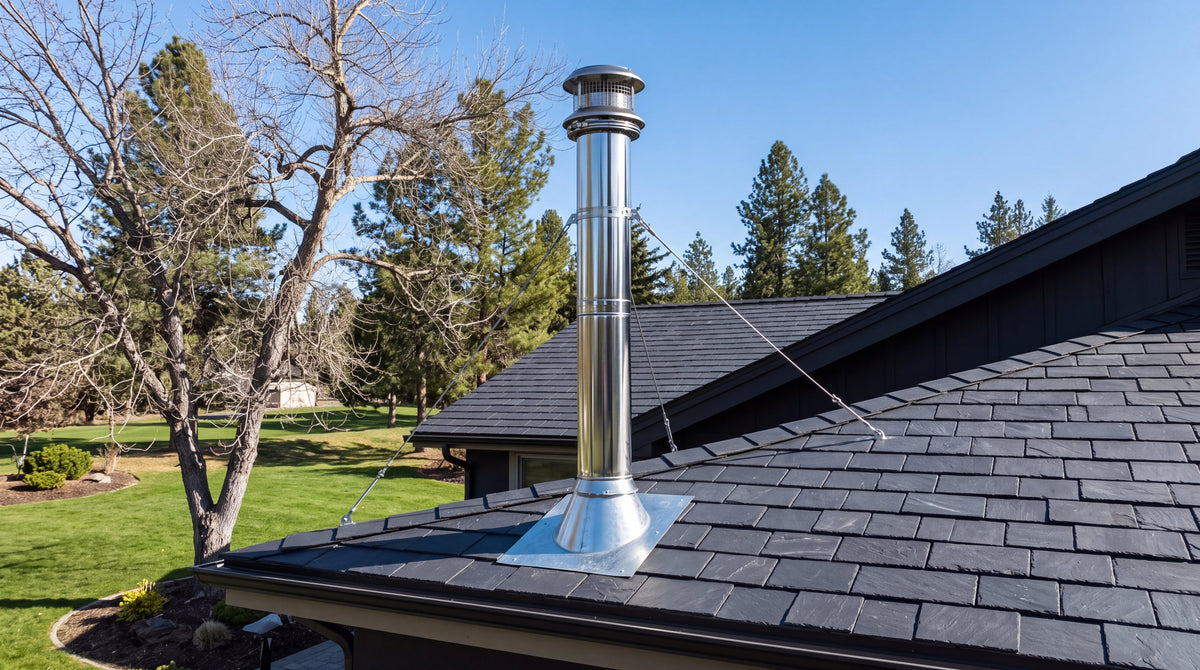

For this reason, manufacturers often require roof braces once the chimney extends beyond a certain height above the roof.
These braces stabilize the chimney during strong winds and reduce movement over time.
Does Snow Add More Weight Than the Chimney?
In many climates, yes.
A snow-covered roof often carries significantly more weight than a stainless steel chimney.
For example:
One foot of light snow may add around 10 to 20 pounds per square foot.
Wet snow can exceed 20 pounds per square foot.
On many homes, the seasonal snow load is substantially greater than the weight added by the chimney itself.
This helps put chimney weight into perspective.
What About Metal Roofs?
A properly installed Class A chimney can be installed through both asphalt shingle and metal roofs.
The roof material itself does not determine whether it can support the chimney.
The important factor is ensuring the chimney support system is attached to the home's structural framing according to the manufacturer's instructions.
Can Older Homes Support a Class A Chimney?
Usually, yes.
Because stainless steel chimney systems are relatively lightweight, most existing homes can accommodate them without structural modifications.
However, older homes should be inspected if:
Roof framing has been modified.
There is visible sagging.
Water damage has weakened framing.
Previous repairs are questionable.
If structural concerns exist, consult a qualified contractor before installation.
When Is Additional Support Needed?
Additional support may be required if:
The chimney extends several feet above the roof.
The installation includes offsets or elbows.
The chimney passes alongside an exterior wall.
Local wind conditions are severe.
The manufacturer specifies additional bracing.
Support requirements vary by manufacturer, so always follow the installation manual for your specific chimney system.
Why Proper Support Is So Important
The purpose of chimney supports isn't simply to carry weight.
Proper supports also help:
Prevent chimney movement during high winds.
Reduce stress on pipe connections.
Protect roof flashing from damage.
Maintain proper alignment.
Extend the life of the chimney system.
Even a relatively lightweight chimney needs to remain rigid and properly supported throughout its service life.
Should You Be Concerned About Roof Damage?
In most cases, no.
A professionally installed or properly installed DIY chimney system distributes its load through engineered support components designed specifically for this purpose.
Problems are far more likely to result from:
Improper flashing
Poor waterproofing
Incorrect support spacing
Failure to install required roof braces
Rather than the chimney simply being "too heavy."
Tips Before Installing
Before purchasing your chimney system:
Determine the total chimney height.
Review the manufacturer's support requirements.
Identify where the chimney will pass through the roof.
Verify the chimney will be attached to structural framing.
Plan for roof braces if required.
Follow all installation instructions exactly.
Proper planning helps ensure your chimney performs safely for decades.
The Bottom Line
A Class A chimney is much lighter than a traditional masonry chimney and adds relatively little weight to most residential roofs.
Typical installations weigh somewhere between 30 and 150 pounds, depending on the chimney height and configuration.
More importantly, a properly installed chimney doesn't rely on the roof alone to support its weight. Engineered support components transfer the load into your home's framing while roof braces help stabilize taller chimney systems.
When installed according to the manufacturer's instructions, the weight of a Class A chimney is rarely a limiting factor for a properly constructed home.
Frequently Asked Questions
How much does a 6-inch Class A chimney weigh?
Most 6-inch insulated stainless steel chimney pipe weighs approximately 5 to 8 pounds per foot, depending on the manufacturer.
Is a Class A chimney too heavy for a roof?
No. Most residential roofs can easily support a properly installed Class A chimney because the weight is transferred into the home's structural framing through engineered support components.
Do taller chimneys require extra support?
Yes. Many manufacturers require roof braces or additional support once the chimney extends above a specified height beyond the roofline.
Is a stainless steel chimney lighter than a masonry chimney?
Yes. A stainless steel Class A chimney weighs only a fraction of what a traditional brick or stone chimney weighs.
Does chimney weight damage roofs?
Not when installed correctly. Roof damage is far more commonly caused by improper flashing, poor waterproofing, or incorrect installation than by the chimney's weight.
Can I install a Class A chimney on a metal roof?
Yes. Class A chimney systems can be installed on metal roofs using the appropriate flashing and support components designed for the roofing material.
Disclaimer
This article is intended for educational purposes only and should not replace the installation instructions provided by your chimney manufacturer or applicable local building codes. Chimney support requirements vary by manufacturer, chimney height, and installation type. Always follow the manufacturer's installation manual and consult a qualified professional if you have concerns about your home's structural capacity or roof framing.
